Product profile |
This vehicle sensor is mounted in the ceiling in the middle of a parking space,
and uses reflected ultrasonic waves to determine whether a vehicle is present. |
| ■ |
Detection range |
 |

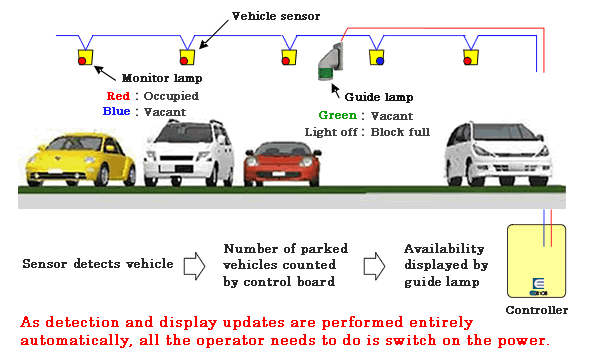

The diagram on the right shows the detection range.
The actual range of detection also depends on the controller settings.
|
 |
| Ceiling-mounted ultrasound sensor ratings and performance |
| Type |
SEN003 |
| Detection method |
Ultrasound echo (presence of vehicle is determined by controller and detection signal outputted) |
| Detection range |
1-3m (actual range can be changed according to controller settings) |
| Rated power supply voltage |
DC 24V±10% (supplied by controller) |
| Consumption current |
Up to 30mA |
| Ultrasonic frequency |
Approx. 40kHz |
| Temperature range |
-20oC to 60oC (provided no freezing occurs) |
| Place of use |
Indoors (sheltered from rain and snow) |
| |
| Construction and connection |
| Main materials |
Cover: ABS resin |
| Weight |
Not more than 120g |
| Connection |
Connected by cable with special socket |
| ■ |
System specifications |
 |
Installation location |
Sensors are fitted in the center of each parking space. |
| Power supply |
The location of the control board of the parking lot requires power supply of around 100V/1kW. This covers the power requirements of all the sensors and communications, etc. |
